Para-Selective Oxyiodination of Aromatic Compounds Using Potassium Iodide and Oxone

N. Narender, P. Srinivasu, S. J. Kulkarni, K. V. Raghavan
Synth. Commun. 32(15), 2319-2324 (2002)

HTML by Rhodium

Abstract

A highly efficient, simple, mild and regioselective method for oxyiodination of aromatic compounds is reported. The electrophilic substitution of iodine generated in situ from KI as an iodine source and Oxone as an oxidant for the first time.

Aryl iodides have widely been successfully used as synthetic intermediates in the formation of new carbon–carbon bonds via replacement of their iodine atoms with electrophiles1a-h. For more than a century, e.g., in the synthesis of Fanta2 and Heck3, more extensive progress has retarded due to the lack of simple and reliable methods of their preparation4. However, synthetic methods leading to aromatic iodides5 by direct iodination of aromatic compounds are relatively limited compared with those of preparing aromatic chlorides and bromides because of the low electrophilicity of iodine.

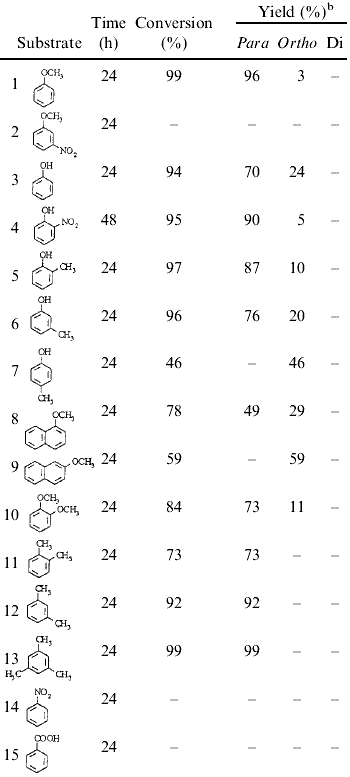

Table 1.
Regioselective Oxyiodination of Aromatics with KI-Oxonea

Notes:
a. Substrate (2 mmol), KI (2.2 mmol),
Oxone (2.2 mmol), MeOH (10 mL), RT
b. GC yields. Products characterized by NMR/MS.

Although halogenation of aromatic compounds with halogens is well known reaction, bromination and chlorination easily proceed with or sometimes without Lewis acid catalysts, but iodination usually more difficult to take place. Except for active substrates, oxidizing reagents such as nitric acid, iodic acid, sulfur trioxide, sulfuric acid and hydrogen peroxide must normally used in order to generate a better electrophile6 by oxidation of molecular iodine. It was also reported that the aromatic iodination with molecular iodine was catalyzed by stoichiometric amounts of metal halides, such as AlCl3–CuCl27, or SbCl58, and a direct iodination was carried out by using NH4I and catalytic amounts of NOBF4 in CF3COOH/CH2Cl2 or CF3COOH/CH3COOH with molecular oxygen9. These procedures suffer some deficiencies. The most serious of these are substrate limitations due to reaction conditions and the loss of iodine from the reaction as hydrogen iodide or metallic iodide.

We have designed a novel system to generate electrophilic iodine in situ from easily available KI as an iodine source, commercially available Oxone as an oxidant for the oxyiodination as a possible alternative to solve the disadvantages described in the earlier methods. In this communication we report a new method for the para selective oxyiodination of aromatic compounds using Oxone as an oxidant, and KI as an iodine source.

Potassium peroxymonosulfate is an inexpensive and readily accessible oxidizing agent. It is commonly used as Oxone (2KHSO5·KHSO4·K2SO4) and is a versatile oxidant for the transformation of a wide range of functional groups10.

A number of different aromatic compounds were subjected to the iodination reaction to test the generality of this method and the results are presented in Table 1. These reactions proceeded efficiently under mild conditions in methanol with high yields and regioselectivity with KI and Oxone. As Table 1 shows that the reaction gives high yields and para-selectivity for a range of substituted benzenes of high activity. The results in Table 1 indicate that activated aromatic compounds are more selective for nuclear iodination. Introduction of an electron-withdrawing group on the aromatic ring substantially decreases the rate of ring iodination (Table 1, Entries 2 and 4) while on electron donating group increases it. 2-methoxy-naphthalene gives 1-iodo-2-methoxy naphthalene (Scheme 1). When the less reactive aromatics such as nitro benzene, benzoic acid failed to undergo iodination under the same reaction conditions.

  1. ArH + KI + 2 KHSO5·KHSO4·K2SO4 ArI + KOH + K2S2O8·KHSO4·K2SO4 + H2O
  2. 2 KHSO5·KHSO4·K2SO4 + KI KOH + HOI + K2S2O8·KHSO4·K2SO4
  3. 2 HOOSO3K 2 ·OH + 2 ·OSO3K
  4. KI + 2 ·OH + ·OSO3K KOH + HOI + K2S2O8
  5. ArH + HOI ArI + H2O

A wide range of solvents has been used in these reactions including carbon tetrachloride, hexane, dichloromethane, methanol and acetonitrile. The best results were obtained by using methanol as a solvent compared to others. We surveyed the iodination with various oxidants such as Oxone, tert-butylhydroperoxide, hydrogen peroxide and molecular O2. However, Oxone is far superior to the other oxidants. The role of Oxone was confirmed by conducting a blank experiment where the formation of iodo compounds was not observed.

A typical oxyiodination of an aromatic compounds in the presence of Oxone proceeds according to the stoichiometry of Eq. 1. It is believed that the iodination proceeds via the formation of hypoiodous acid. The hypoiodous acid has higher instability due to pronounced ionic nature and thus more reactivity towards the aromatic nucleus. The absence of iodination of the ring methyl group (Table 1, Entries 11-13) is indicative of the electrophilic mechanism of the reaction rather than a radical pathway.

Oxone, in direct comparison, has a higher onset of decomposition than hydrogen peroxide and liberates less energy. This reaction is performed at lower temperature, which provides a larger margin of safety. Additionally Oxone is a solid, allowing for the addition of precisely weighed amounts of reagent to be used in the reaction.

In conclusion, we have developed a novel system using Oxone as an interesting alternative to hydrogen peroxide in the oxidative iodination of aromatic substrates. The commercial availability of the reagents, simple reaction conditions, no evolution of hydrogen iodide, high yields of monoiodinated products and work-up is simple. The absence of side chain iodination products in reaction conducted in methanol suggests a substantial increase in the rate of the ionic process.

Experimental

General Procedure for the iodination of aromatic compounds

Oxone (2.2 mmol) was added to a well stirred solution of KI (2.2 mmol) and substrate (2 mmol) in methanol (10 mL) and the reaction mixture was allowed to stir at room temperature. The reaction was monitored by thin layer chromatography (TLC). After the completion of the reaction, the mixture was filtered and solvent evaporated under reduced pressure. The products were purified by column chromatography over silica gel and confirmed by 1H-NMR and mass spectra.

References

  1.
    1. Fanta P.E., Synlett. 9 (1974)
    2. Nilsson M., Tetrahedron Lett., (1966) 679.
    3. House H.O., Respess W.L., Whitesides G.M., J. Org. Chem., 31 (1966) 3128.
    4. Matsui K., Tobita E., Ando M., Kondo K., Chem. Lett., (1981) 1719.
    5. Burdon J., Coc P.L., Marsh C.R., J. Chem. Soc. Chem. Commun., (1967) 1259.
    6. Setsune J., Matsukawa K., Wakemoto H., Kitano T., Chem. Lett., (1981) 367.
    7. Suzuki H., Kobayashi T., Yoshida Y., Osuka A., Chem. Lett., (1983) 193.
    8. Suzuki H., Abe H., Osuka A., Chem. Lett., (1980) 1363.
  2. Fanta P.E., Synthesis 9 (1974)
  3. Heck R.F., Org. React. (N.Y.), 27 (1982) 345.
  4. Merkushev E.V., Russ. Chem. Rev. (Engl. Transl.), 53 (1984) 583.
  5. Merkushev E.B., Synthesis, (1988) 923.
  6. Butler A.R., J. Chem. Educ., 36, 508 (1971) and references cited therein.
  7. Sugita T., Idei M., Ishibashi Y., Takegami Y., Chem. Lett., (1982) 1481.
  8. Uemura S., Onoe A., Okano M., Bull. Chem. Soc. Jpn., 47 (1974) 147.
  9. Radner F., J. Org. Chem., 53 (1988) 3548.
  10. Webb K.S., Levy D., Tetrahedron Lett., 36, 5117 (1995) and references cited therein.
