Le Ngoc Thach, Tran Huu Anh, Nguyen Anh Kiet, Tran Kim Phuong
Tap Chi Hoa Hoc, 37(1), 92-94 (1999)
HTML by Rhodium
After proposing some new safe-easy and simple methods to isomerize safrole to isosafrole in previous publication, now in this paper we would like to report how to improve this reaction onto a high level The microwave chemistry can offer the conditions for realizing this reaction in a short time than before, in the presence of catalysts: KOH. KOt-Bu. KF-Al2O3 with or without the phase transfer catalyst Aliquat 336. The reaction was carried out in both reactors, multimode and monomode oven, the latter appears to he better than the first one, with since the lower power it can give the same yield.

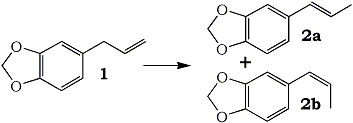

Isosafrole 2 (trans-2a and cis-2b) may be prepared from Safrole 1. This is the best way to afford the starting material of the synthesis of heliotropin. There are a lot of methods presented for realizing this isomerization. But almost they are very difficult to apply, because the require some hard conditions such as in high or low pressure or use some strange catalysts and, moreover reaction is run with solvents1-4. In previous paper we proposed to replace these above mentioned conditions by the new method in dry media condition, with or without phase transfer catalysts. With these conditions, we got some good results, but the reaction time was still long5.
Table 1
Yield of isosafrole in conventional heating
Entry |
Catalyst |
Temp |
Time |
GC (%) |
Yield |
|
1 | 2 | |||||
1 | KOH | 120°C | 120 min | 29.23 | 70.44 |
67% |
2 | 150°C | 60 min | 4.49 | 95.63 |
91% |
|
3 | 150°C | 120 min | 1.96 | 97.73 |
94% |
|
4 | 180°C | 120 min | trace | 99.27 |
96% |
|
5 | 150°C* | 45 min | trace | 99.37 |
97% |
|
6 | KOt-Bu | 80°C | 30 min | 3.63 | 96.37 |
91% |
7 | 80°C | 60 min | trace | 99.45 |
96% |
|
8 | 80°C* | 10 min | trace | 99.73 |
97% |
|
9 | KF-Al2O3 | 150°C | 60 min | 7.88 | 91.91 |
87% |
10 | 180°C | 60 min | 4.29 | 95.47 |
92% |
|
11 | 180°C* | 45 min | trace | 99.69 |
96% |
Notes:
* with Aliquat 336 5% mol
The molar ratios of safrole:reagent are:
KOH (1:3); KOt-Bu (1:1); KF-Al2O3 (1:12)
In the first time, we apply the microwave chemistry6 in the domain of the isomerization of the safrole with both oven multimode (Sharp R-3SV5) and monomode (Maxidigest MX 350). And through this context, optimal conditions are found to collect the highest yield in the shortest reaction time. In this study we will use the catalyst of KOH and introduce two new ones: KOt-Bu and KF-Al2O37. At first, we all tried to realize one reaction in the presence of Aliquat 336, as usual and cheap phase transfer catalyst (PTC), to find the further role of PTC because this reaction began by the attack of an anionic nucleophile. The second reason to use PTC here is that the chemist wants to know the part of PTC in the solid state reaction. Table 1 is some of our results in the conventional heating (oil bath with magnetic stirrer).
We found that in the case of KOH high temperature (180°C) and the long reaction time (2 hours) are very necessary for this reaction. In the case of KOt-Bu, high temperature is not essential. We can use the water bath (80°C) and the reaction time now (only one hour) is shorter than the case of KOH.
Table 2
Yield of isosafrole under microwave irradiation
Entry |
Catalyst |
Power |
Time |
Temp |
GC (%) |
Yield | |
1 | 2 | ||||||
1 | KOH | 300 Wa |
5 min | dec. | - | - | - |
2 | 300 Wa* | 5 min | 132°C | 2.66 | 97.34 |
94% |
|
2 | 45 Wb | 5 min | dec. | - | - | - | |
4 | 45 Wb* | 161°C | trace | 99.49 |
97% |
||
5 | KOt-Bu | 600 Wa | 5 min | 111°C | 19.72 | 80.09 |
77% |
6 | 600 Wa | 6 min | 141°C | trace | 99.90 |
96% |
|
7 | 150 Wb | 6 min | 93°C | 20.34 | 79.66 |
76% |
|
8 | 150 Wb | 8 min | 117°C | trace | 99.17 |
96% |
|
9 | 90 Wb* | 15 min | 146°C | trace | 99.52 |
97% |
|
10 | 120 Wb* | 5 min | 106°C | 1.44 | 97.04 |
95% |
|
11 | 120 Wb* | 6 min | 142°C | trace | 99.35 |
97% |
|
12 | KF-Al2O3 | 400 Wa | 3 min | 190°C | 5.12 | 93.24 |
94% |
13 | 75 Wb | 5 min | 134°C | 15.02 | 84.79 |
81% |
|
14 | 90 Wb | 5 min | 139°C | 6.7I | 93.53 |
89% |
|
15 | 90 Wb | 9 min | 142°C | 5.92 | 94.10 |
90% |
|
16 | 120 Wb | 5 min | 151°C | 5.03 | 94.77 |
91% |
|
17 | 75 Wb* | 5 min | 140°C | trace | 99.49 |
96% |
Notes:
* with Aliquat 5% mol a multimode b monomode
The molar ratios of safrole:reagent are:
KOH (1:1.5 in entry 2 and 4); (1:3 in entry 1 and 3).
KOt-Bu (1:1); KF-Al2O3 (1:10);
The activity of KF-Al2O3 is similar to KOH, but KF-Al2O3 is not corrosive and easier to keep and to practice than KOH. In all three cases, it is very interesting that the presence of Aliquat 336 with 5% mol, calculated on the base, increase the yield to maximum (99%) in shorter time (45 min. in the case of KOH, 10 min. for KOt-Bu and 45 min. for KF-Al2O3). The conventional heating above is compared to the microwave irradiation, and results collected are in Table 2.
We noted that in three cases of catalyst, the monomode oven (Maxidigest MX 350) always gives good yield in shorter time or at lower power than the multimode oven (Sharp 2SV5), for instance in the entry 2 (300 W) and 4 (45 W), entry 6 (600 W) and 8 (150 W), entry 12 (400 W) and 14 (90 W).
With the presence of KOH, reaction mixture is decomposed under microwave irradiation, expect when Aliquat 336 is present, as in the entry 2 and 4. As expected, from the Table 1 and 2, we recognized that under the irradiation of microwave, the isomerization of safrole took place very quickly in a few minutes instead of some hours in conventional heating. The presence of phase transfer catalyst Aliquat 336 is very necessary. It promoted all reactions in both cases with or without the use of microwave. In the microwave it is still the best one, because the reaction could attain the maximum yield in shorter reaction time.
The ratio of two isomers cis-2b:trans-2b is 25 to 30% in the case of KOH; 5 to 8% in the case of KOt-Bu; and 12 to 17% in the case of KF-Al2O3.
KOH has been ground before using, KF-Al2O3 has been prepared as described in the previous paper of Singh7. We mix safrole and reagents steady to the homogeneous mixture before putting it in the oil bath or in the microwave oven. The yield has been measured on the result given by GC-MS HP 6890.
