Something went wrong with this thread and so I deleted and modified a few posts - I don't think anything was important - just double posts and questions asking about this thread being broken... fixed now though...
Vesp
- Administrator
- Foundress Queen
- Posts: 3,130
aniracetam
- bioanalytical chemist
- Subordinate Wasp
- Posts: 123
the metabolic pathway was actually relevant, as i continue to post spectral data.
it's an indicator of which byproducts are likely being separated.

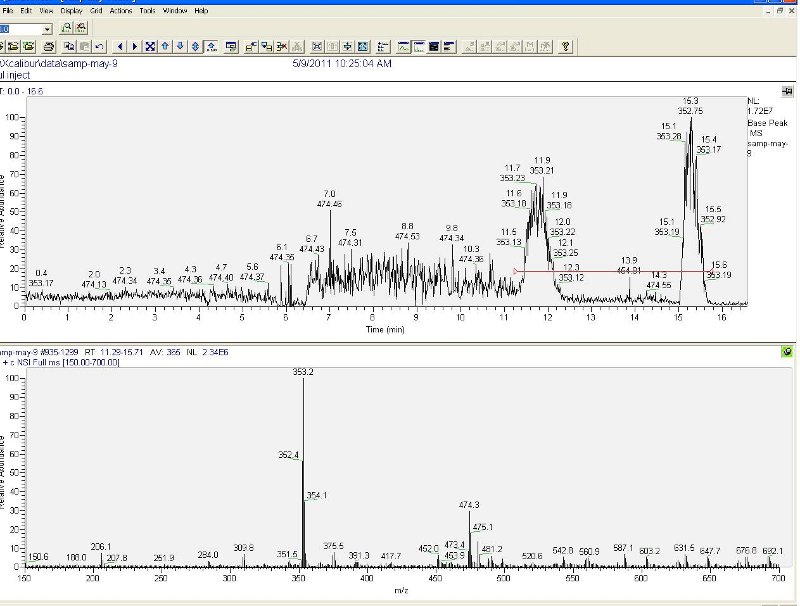

in any event, I ran ESI-MS on an extraction from a new batch (4 days old), and got a strong signal for 353 m/z.
odd, because the only ergoline i can find with that mass is methysergide...
(oh crap.. just realized..the amber bottle I put the sample in had residual diethylamine, though I rinsed it with IPA. the sample was basified with conc. NH4OH in MeOH, extracted with xylene, then extracted with tartaric acid in MeOH and transferred to that bottle)
yea, I know..the background is fairly noisy, but the signal-to-noise ratio is two orders of magnitude.
the background base peak is 474.4, sample base peak is 353.2.
it's an indicator of which byproducts are likely being separated.
in any event, I ran ESI-MS on an extraction from a new batch (4 days old), and got a strong signal for 353 m/z.
odd, because the only ergoline i can find with that mass is methysergide...
(oh crap.. just realized..the amber bottle I put the sample in had residual diethylamine, though I rinsed it with IPA. the sample was basified with conc. NH4OH in MeOH, extracted with xylene, then extracted with tartaric acid in MeOH and transferred to that bottle)
yea, I know..the background is fairly noisy, but the signal-to-noise ratio is two orders of magnitude.
the background base peak is 474.4, sample base peak is 353.2.
overunity33
- Subordinate Wasp
- Posts: 218
whos gona make this thing for the seed culture?
ender
- Larvae
- Posts: 9
I hear ya
I'm gonna have to finagle one. been working with them for about two years, and know what to look for in one.
was able to differentiate between THH and harmine (seen in the attachment) in a sample using an LCQ, which I've seen go for 2800 - 7500 on 3bay.
already bought a harvard apparatus 22 series LC syringe pump for $130
You can pick up a cheap dispersive IR instrument that does a decent job of ID'ing samples such as harmine. The one that run these spectra of harmaline and DXM cost about $100. The resolution exceeds my reference library spectra.
- ender
overunity33
- Subordinate Wasp
- Posts: 218
Where do you find one of these 100$ units? Since its the same type of setup as UV-vis could you get one with a detector/grating that could be easily switchable between the two? havent done too much reading on it but it sounds worthwhile. id love to hear more.
ender
- Larvae
- Posts: 9
No, the source and detector are different between the two instruments. That specific IR instrument is described in the following website:
hxxp://antiquesci.50webs.com/PE337/PE337-1.htm
Instruments of that type come up on auction occasionally. Since they're quite heavy, you have to get lucky and have one show up AND have it close enough to go pick it up in person without paying freight charges which can run into the hundreds depending on the distance. It might take years to get that lucky, but not if you're living in or near a major city with a lot of industry. Some experience and skill at troubleshooting electronics and mechanisms helps as a lot of stuff is broken that you can get cheap on auction.
You'll also need to capture the detector signal which is a DC voltage using some sort of data acquisition device. But those can be had cheap. For example this one, at $29, would be adequate:
hxxp://www.dataq.com/products/startkit/di145.html
Even comes with software.
So there's some thought and perhaps years of patience that goes into it, but the technology is definitely out there.
- ender
hxxp://antiquesci.50webs.com/PE337/PE337-1.htm
Instruments of that type come up on auction occasionally. Since they're quite heavy, you have to get lucky and have one show up AND have it close enough to go pick it up in person without paying freight charges which can run into the hundreds depending on the distance. It might take years to get that lucky, but not if you're living in or near a major city with a lot of industry. Some experience and skill at troubleshooting electronics and mechanisms helps as a lot of stuff is broken that you can get cheap on auction.
You'll also need to capture the detector signal which is a DC voltage using some sort of data acquisition device. But those can be had cheap. For example this one, at $29, would be adequate:
hxxp://www.dataq.com/products/startkit/di145.html
Even comes with software.
So there's some thought and perhaps years of patience that goes into it, but the technology is definitely out there.
- ender
aniracetam
- bioanalytical chemist
- Subordinate Wasp
- Posts: 123
hell, I'd love to have an FTIR, but I've never seen them cheaper than $400. I saw a Nicolet Impact 410 with software sell recently for $898, not including shipping.
I'll probably pass on an FTIR, and eventually obtain an LC-MS/MS (from contacts) instead, it's a much more powerful method of characterization. they're definitely not cheap, but I've seen a complete Finnigan LCQ system with a workstation running Excalibur sell for $2700. I love those machines; very easy to maintain, imo
a multifunction DAQ module is a handy alternative for control and acquisition from instruments which don't come with software. It may require some low-level programming, but it works
I'll probably pass on an FTIR, and eventually obtain an LC-MS/MS (from contacts) instead, it's a much more powerful method of characterization. they're definitely not cheap, but I've seen a complete Finnigan LCQ system with a workstation running Excalibur sell for $2700. I love those machines; very easy to maintain, imo
a multifunction DAQ module is a handy alternative for control and acquisition from instruments which don't come with software. It may require some low-level programming, but it works
aniracetam
- bioanalytical chemist
- Subordinate Wasp
- Posts: 123
here's a microscale chrom separation of tartrate salts treated with Van Urk's. Eluent is EtOAc.
aniracetam
- bioanalytical chemist
- Subordinate Wasp
- Posts: 123
ergot alks, tartrate salt form in EtOH.
van urk's spot test (control is the light dot in the lower left part of the filter, it's just van urk's reagent)
van urk's spot test (control is the light dot in the lower left part of the filter, it's just van urk's reagent)
Vesp
- Administrator
- Foundress Queen
- Posts: 3,130
Very nice - you have now extracted it? How many mg do you think you have obtained?
aniracetam
- bioanalytical chemist
- Subordinate Wasp
- Posts: 123
2000+ mg
